TPB1 Modular Pushbutton

Basic Information
  1. Model TPB1
Get a Quote

Product Description

Application

TPB1 modular pushbutton is applicable to the control system of a circuit with AC 50/60Hz rated voltage to 230V, such as to work with magnetic starter, contactor and other electrical circuit control. The button with light is also applicable to places where various light signals indication are required.

Specification

Rated Voltage 230V AC
Color Red, Green
Rated Current 6A
Mechanical L .ife (times) 250000
Electrical Life (times) 100000
Contact Combination Mode 1NO+2NC, 2NO+1NC, 3NO, 2NO+2NC
Connecting Wire ≤6mm2
Tightening Torque 0.8N.m
Use Category AC-14
Protection Grade IP20
Rated Voltage of Indicator 6V, 12V, 24V, 110V, 230VAC/DC
Rated Working Current ≤20mA
Working Life ≥30000h
Ambient Temperature -5°C~+40°C
Altitude ≤2000m
Installation Method Mounted on 35mm Din Rail

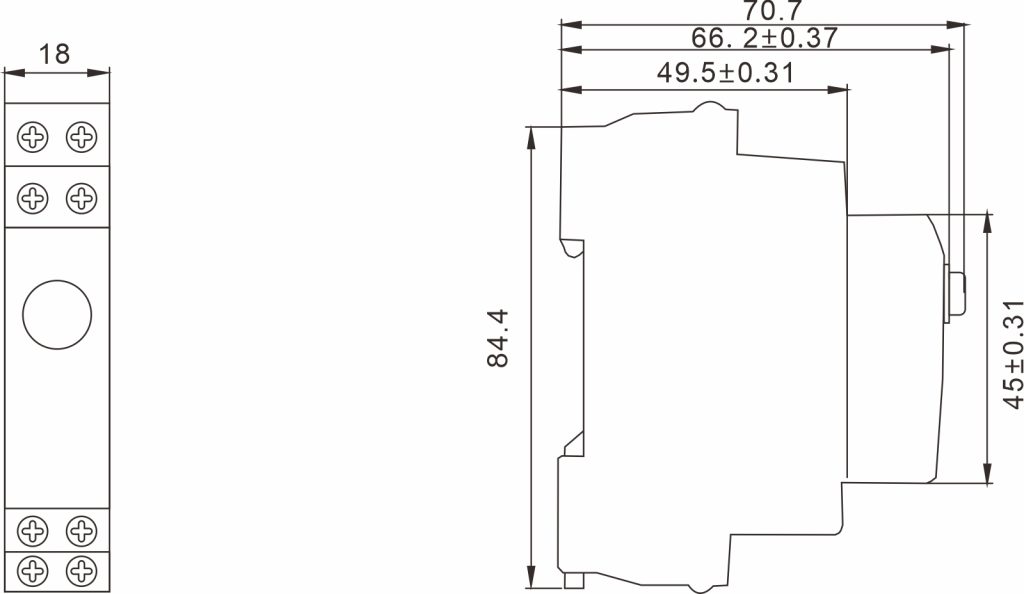

Dimensions
