TIL1 Modular Indicator

Basic Information
  1. Model TIL1
Get a Quote

Product Description

Application

TIL1 modular indicator is applicable to the control system of a circuit with AC 50/60Hz rated voltage to 230V or DC voltage to 230V. It is used for indication signals, preset signals, accident signals or other indications in telecommunication, electrical, and other industries as well.

Specification

Rated Voltage  6 V, 12 V, 24 V, 110 V, 230 VAC/DC
Color Red, Yellow, Blue, Green, White
Rated Current ≤20 mA
Working Life ≥30000 h
Connecting Wire ≤6 mm2
Tightening Torque 0. 8 N. m
Protection Grade IP 20
Ambient Temperature -5°C~+40°C
Altitude ≤ 2000 m
Installation Category Class ll and Ⅲ
Pollution L .evel Level 2
Installation Method Mounted on 35 mm Din Rail

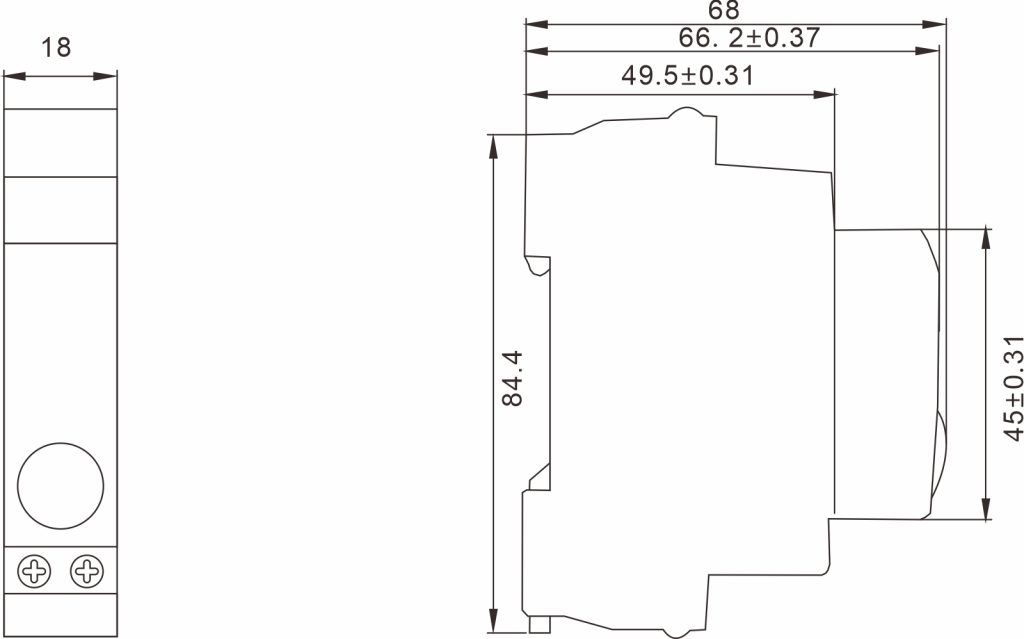

Dimensions
