Solar PV Connector

Basic Information
  1. Model MC4
  2. Rated Current 30A/50A
  3. Degree of protection IP67mated/ IP2X unmated
Get a Quote

Product Description

Specification

Rated current 30A
Rated voltage 1500V DC(IEC)/ 800V DC(UL)
Ambient temperature range -40°C~+90°C(IEC)
Degree of protection. IP67 mated | IP2X unmated
Contact resistance of plug connectors 0. 5mΩ
Contact material Copper, tin plated
Locking system plug connectors Snap-in (nur/only MC4)
Flame class UL 94-HB/UL 94-Vo
Cable size 2.5mm²,4mm²,6mm²

Specification

Rated current 30A/50A
Rated voltage 1500V DC(IEC)/ 800V DC(UL)
Ambient temperature range -40°C~+90°C(IEC)
Degree of protection. IP67 mated | IP2X unmated
Contact resistance of plug connectors 0. 5mΩ
Contact material Copper, tin plated
Locking system plug connectors Snap-in (nur/only MC4)
Flame class UL 94-HB/UL 94-Vo
Cable size 2.5mm²,4mm²,6mm²

Specification

Rated current 30A
Rated voltage 1500V DC(IEC)/ 800V DC(UL)
Ambient temperature range -40°C~+90°C(IEC)
Degree of protection. IP67 mated | IP2X unmated
Contact resistance of plug connectors 0. 5mΩ
Contact material Copper, tin plated
Locking system plug connectors Snap-in (nur/only MC4)
Flame class UL 94-HB/UL 94-Vo
Cable size 2.5mm²,4mm²,6mm²

Specification

Rated current 30A
Rated voltage 1500V DC(IEC)/ 800V DC(UL)
Ambient temperature range -40°C~+90°C(IEC)
Degree of protection. IP67 mated | IP2X unmated
Contact resistance of plug connectors 0. 5mΩ
Contact material Copper, tin plated
Locking system plug connectors Snap-in (nur/only MC4)
Flame class UL 94-HB/UL 94-Vo
Cable size 2.5mm²,4mm²,6mm²

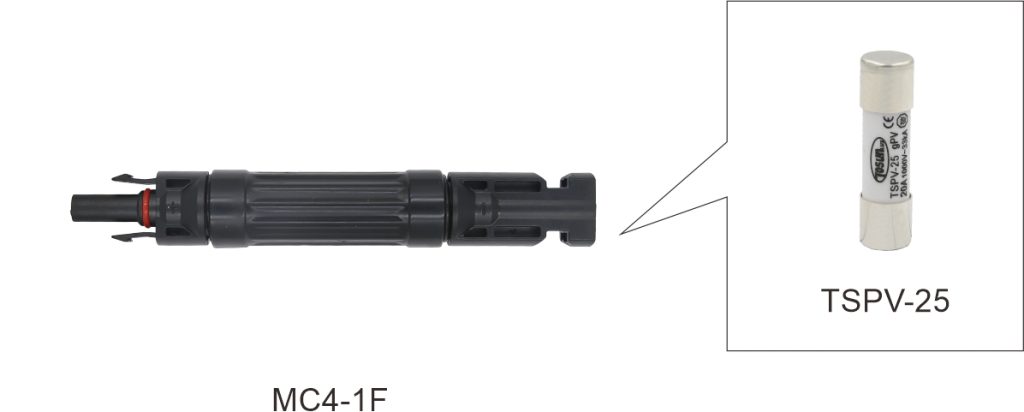

Diode/Fuse type Schottky diode/PV fuse
