LW5 Changeover Switch

Basic Information
  1. Model LW5
  2. lth(A) 16
  3. Mechanical life(times) 3x 10^5
Get a Quote

Product Description

Specification

Application Master Control Direct Control Motor
Using Classes AC-15 DC-13 two breakpoints DC-13 four breakpoints AC-3 AC-4
Ue(V) 500 380 220 440 220 110 440 220 110 380
Te(V) 2.0 2.6 4.6 0.14 0.27 0.55 0.2 0.41 0.82 12
Ui(V) 500
Ith(A) 16
Operation Frequency (times/h) 300 300 120
Mechanical Life (times) 3×10^5
Electrical Life (times) 2×10^4 19.5×10^4 0. 5×10^4
20×10^4

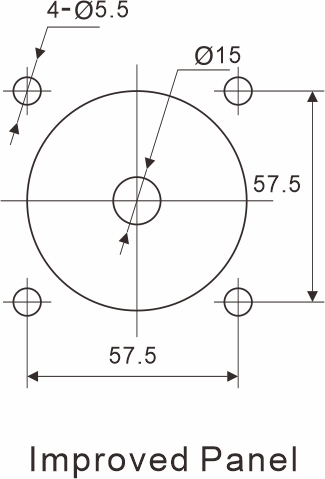

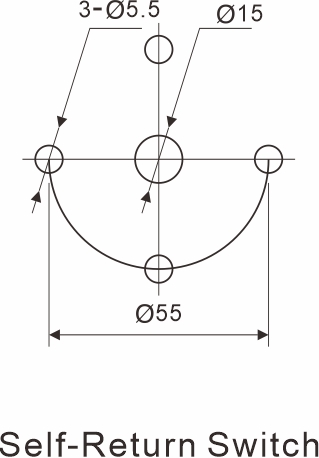

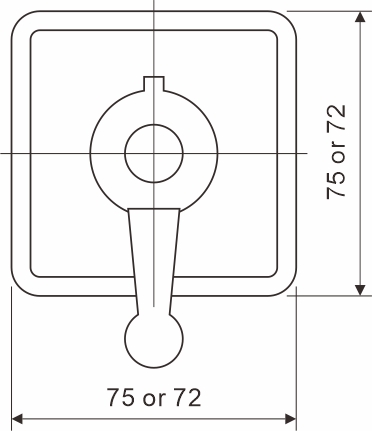

Dimension
