HGLZ Isolating Switch HGLZ-160/4 HGLZ-630/3

Basic Information
  1. Model HGKZ-60/4 HGLZ-630/3
Get a Quote

Product Description

HGLZ-160~1600 Overall Mounting Dimension

Model Overall Dimension Mounting Dimension Terminal Dimension
A B C D E H a b c e R S T Y1 M
HGLZ-160/3 195 135 196 36 140 85 120 65 5.5 20 20 10 3.5 72 8
HGLZ-160/4 225 135 196 36 170 85 150 65 5.5 20
HGLZ-250/3 235 170 215 50 180 110 160 90 5.5 20 25 15 3.5 82 10
HGLZ-250/4 285 170 215 50 230 110 210 90 5.5 20
HGLZ-400/3 300 240 278 65 230 160 210 140 7 35 32 17 5 114 10
HGLZ-400/4 360 240 278 65 290 160 270 140 7 35
HGLZ-630/3 300 260 278 65 230 160 210 140 7 35 40 20 6 114 12
HGLZ-630/4 360 260 278 65 290 160 270 140 7 35
HGLZ-1000/3 473 312 380 120 378 200 353 230 9 40 60 20 8 156 12
HGLZ-1000/4 593 312 380 120 498 200 473 230 9 40
HGLZ-1250/3 473 356 380 120 378 200 353 230 9 40 80 20 8 156 12
HGLZ-1250/4 593 356 380 120 498 200 473 230 9 40
HGLZ-1600/3 473 356 380 120 378 200 353 230 9 40 80 20 10 156 12
HGLZ-1600/4 593 356 380 120 498 200 473 230 9 40

Note: The hole size of wiring board is corresponding to HGLZ.

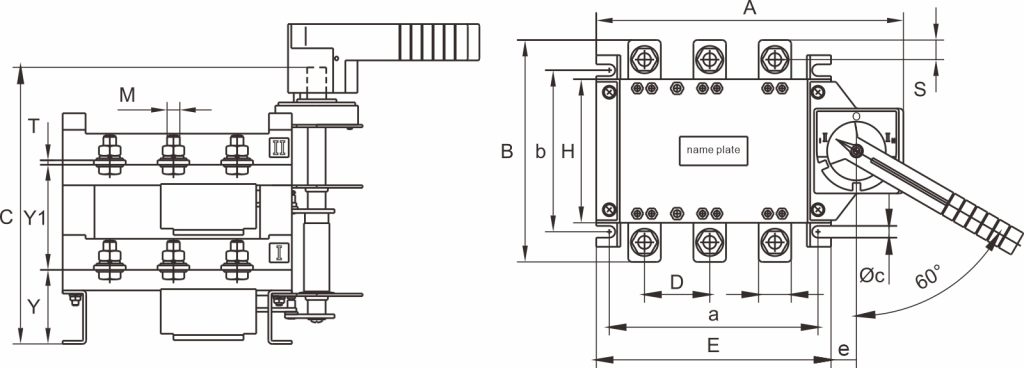

HGLZ-160~630

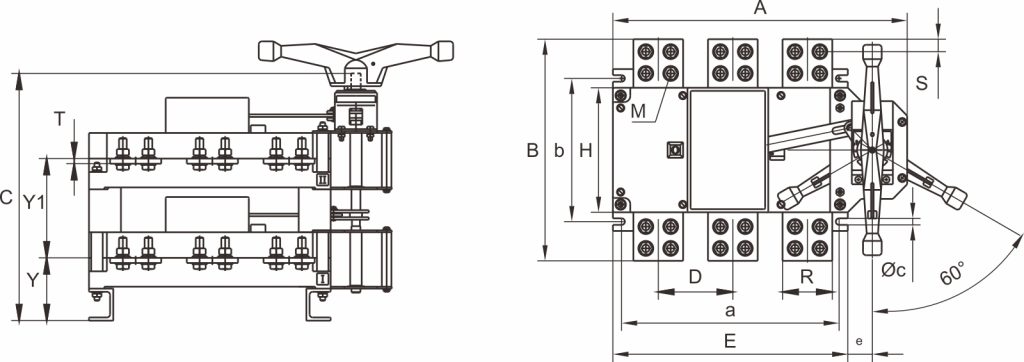

HGLZ-1000~1600
