General Relay LY2

Basic Information
  1. Model LY2
  2. Mounting methods Printed-circuit board,Outlet
Get a Quote

Product Description






Specification










Model
LY2




Terminal layout
2Z




Contact capacity
AC
10A250V




DC
10A30V




Contactresistance(mΩ)
≤50mΩ




Insulation resistance(MΩ)
≥100MΩ




Dielectric strength
BOC
1000VAC




BCC
1500VAC




Coil nominal voltage
AC
6 to 240V




DC
6 to 220V




Coil nominal power
AC
0.9VAto 1.2VA




DC
≤0.9W




Electrical life(OPS)
100000




Mechanical life(OPS)
10000000




Operating temperature(℃)
-40~+60




Weight(g)
≤35




Mounting methods
Printed-circuit board,Flange,Outlet

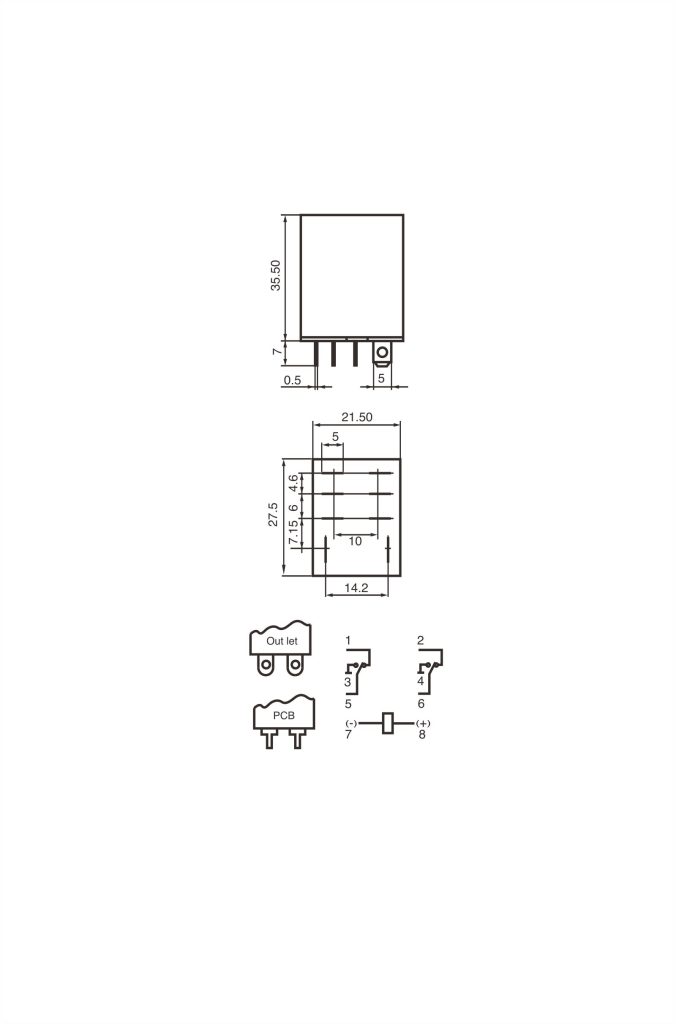

Dimension
