Earth Rod

Basic Information
  1. Item Earth Rod

Product Description

Whorled Copper Coated Earth Rod

Diameter Length
11 1200
11 1500
11 1800
12.7 1200
12.7 1500
12.7 1800
12.7 2400
14.2 1200
14.2 1500
14.2 1800
14.2 2100
14.2 2400
14.2 3000
16 1500
16 1800
16 2400
16 3000
17.2 1200
17.2 1500
17.2 1800
17.2 2100
17.2 2400
17.2 3000

Copper Coated Earth Rod

Diameter Length
9 1200
12.7 1200
12.7 1500
12.7 1800
12.7 2400
14.2 1200
14.2 1500
14.2 1800
14.2 2000
14.2 2100
14.2 2400
14.2 3000
16 1200
16 1500
16 1800
16 2000
16 2400
16 3000
17.2 1200
17.2 1500
17.2 1800
17.2 2000
17.2 2100
17.2 2400
17.2 3000

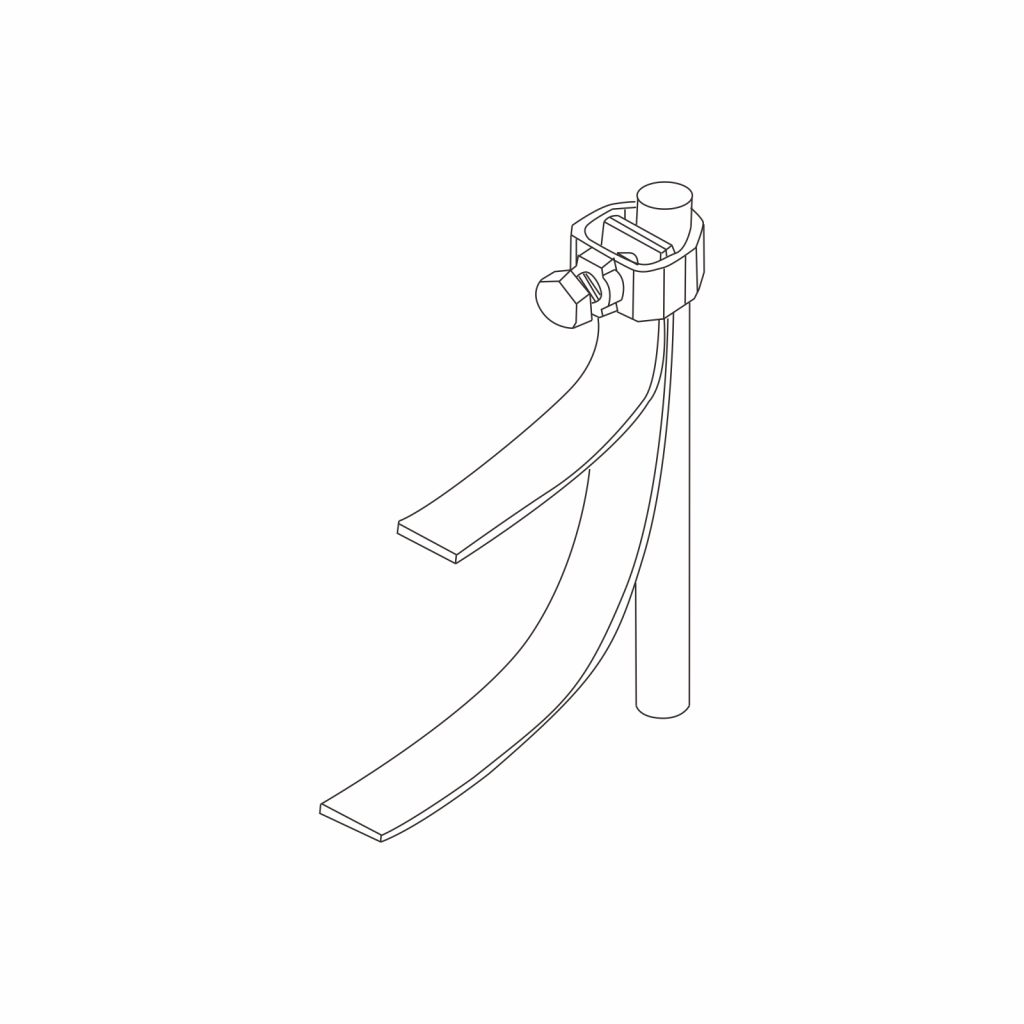

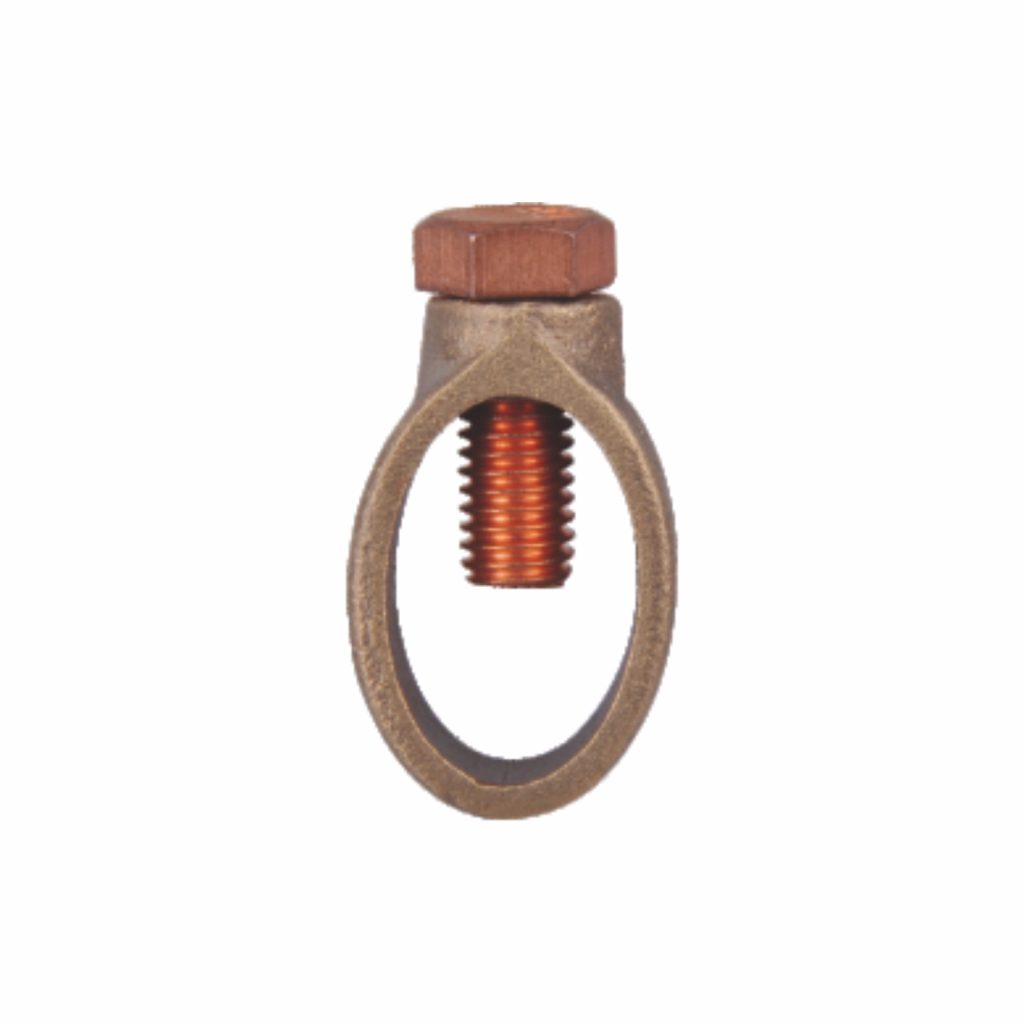

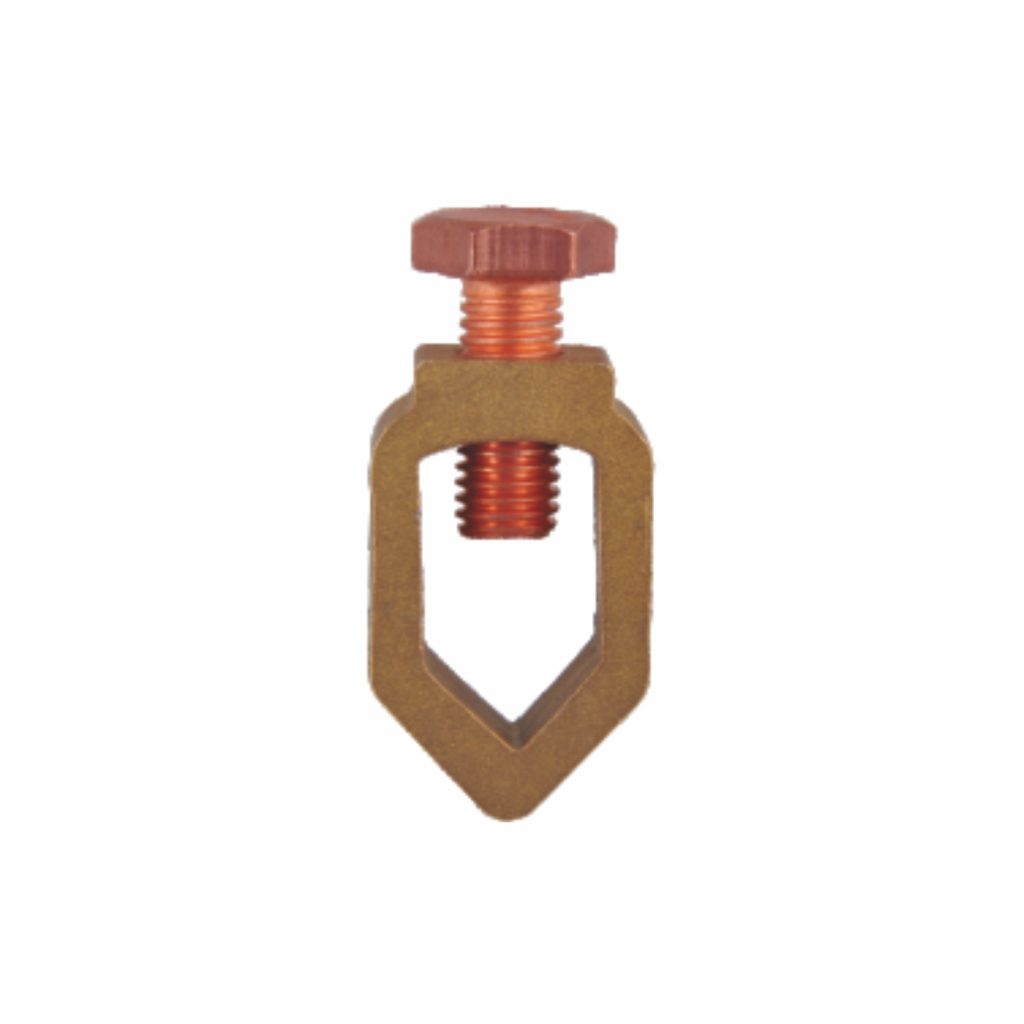

Clamp to connect rod and tape

Model Rod Diameter Size
RT1-12 1/2″ 12.7 26×12
RT1-16 5/8″ 16 26×12
RT1-20 3/4″ 20 26×10

Model Rod Diameter Size
RT2-12 1/2″ 12.7 26×12
RT2-16 5/8″ 16 26×12
RT2-20 3/4″ 20 26×10

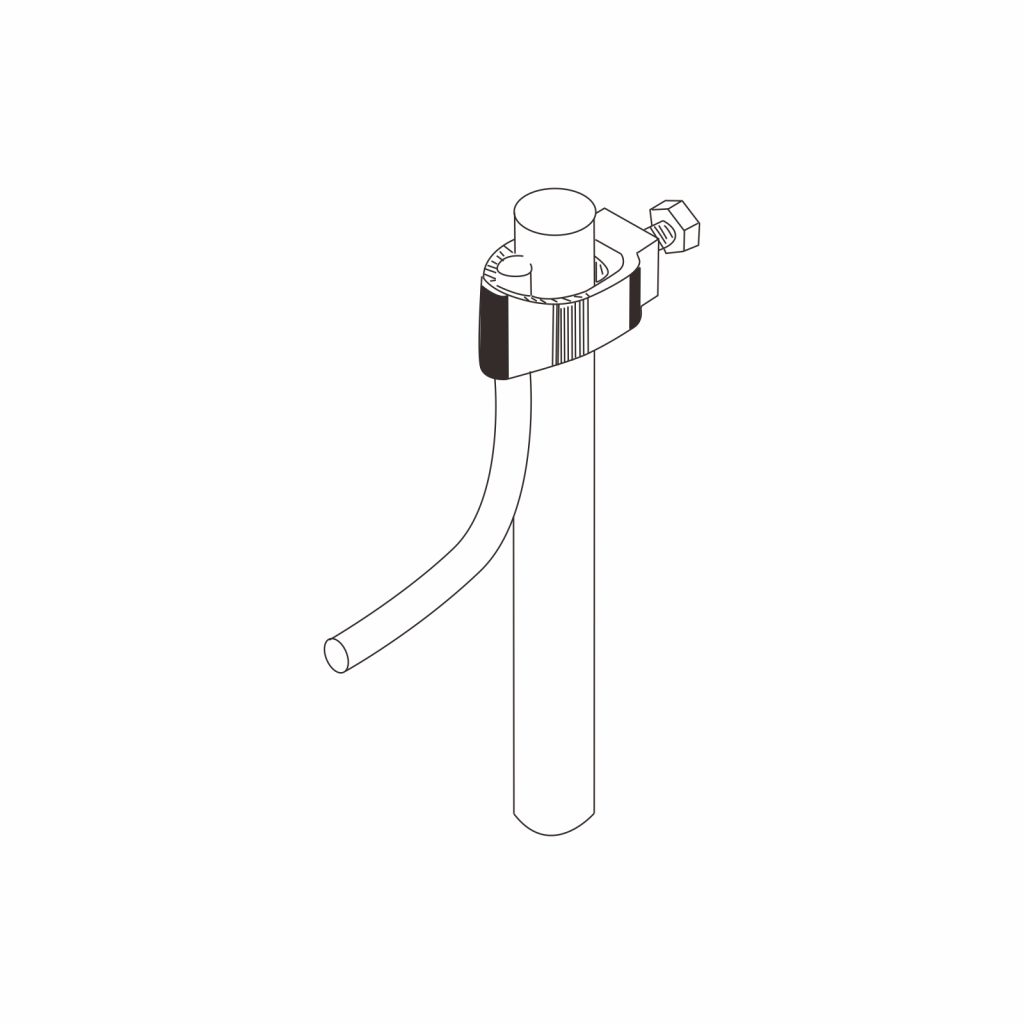

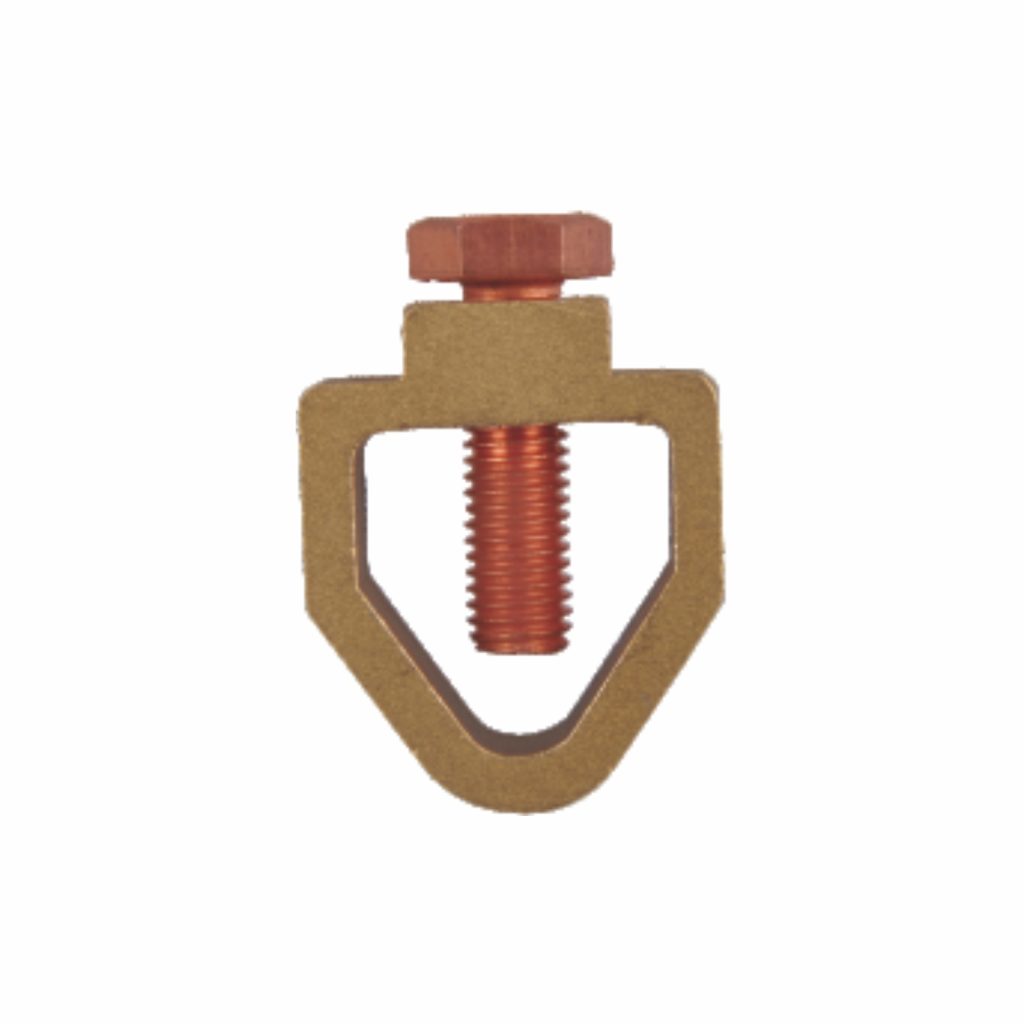

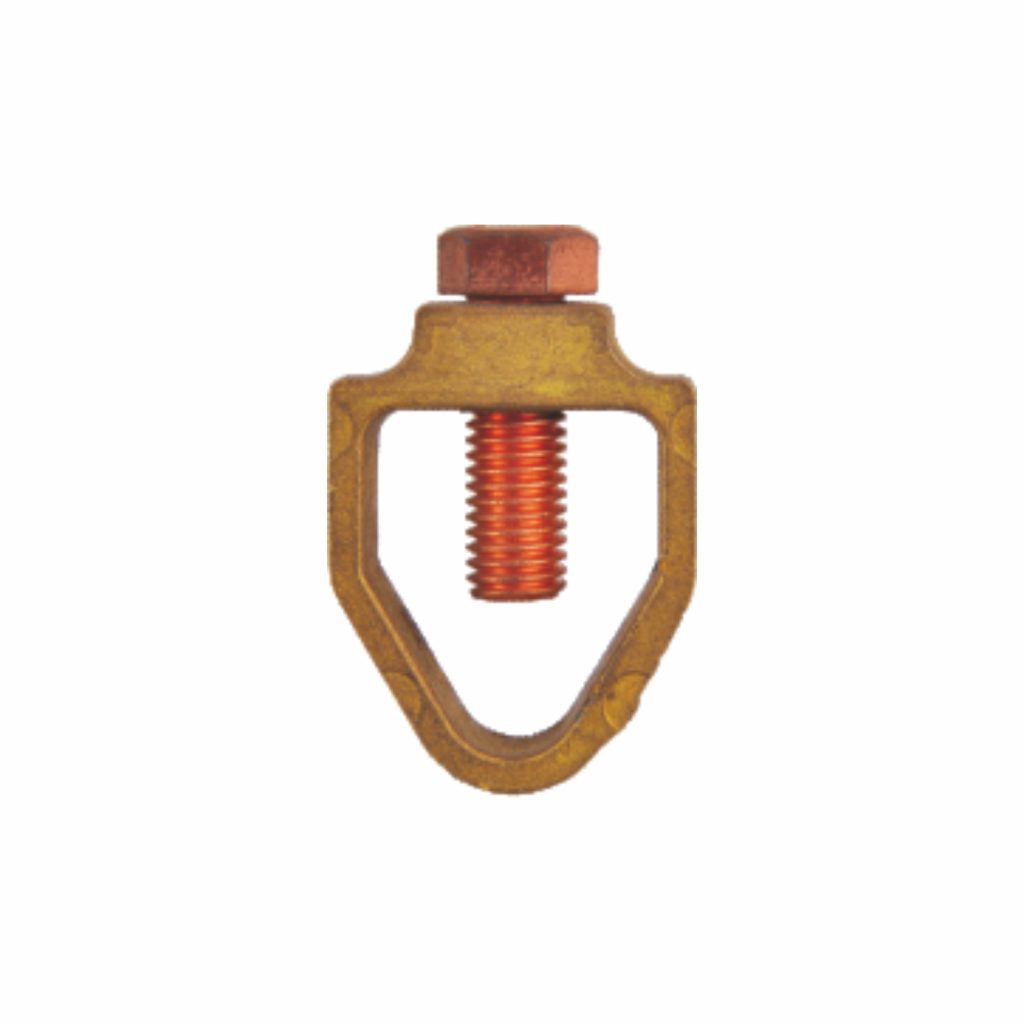

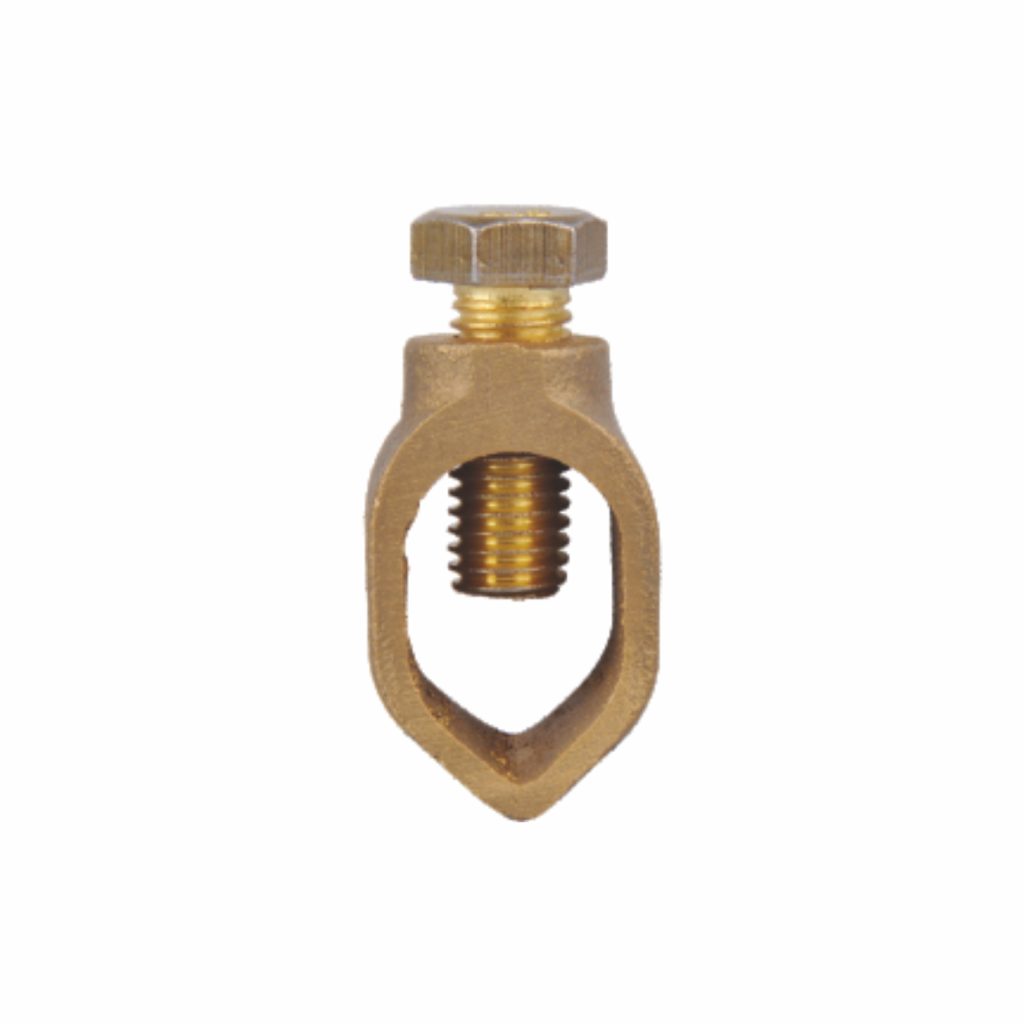

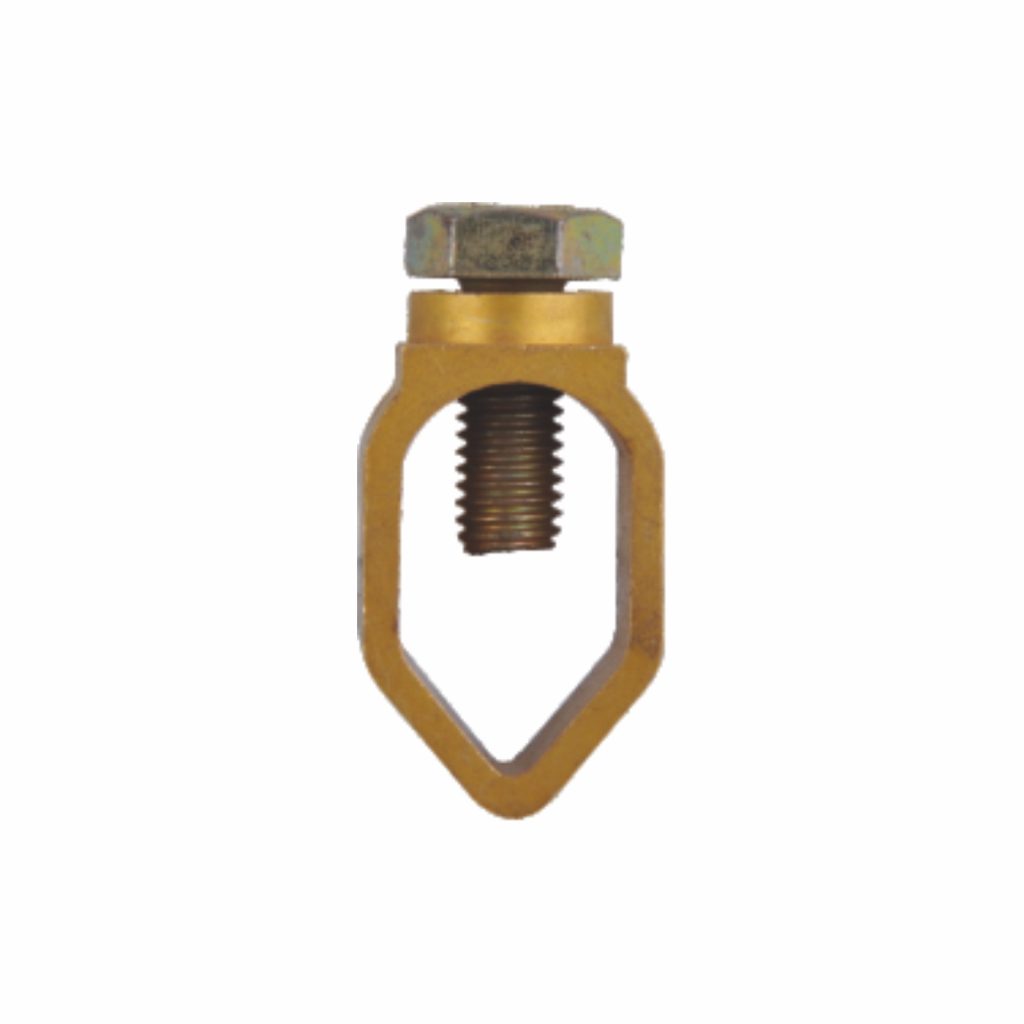

Clamp to connect rod and cable

Model Rod Diameter Size
RC1-9.5 3/8″ 9.5 6-35mm²
RC1-12 1/2″ 12.7 16-50mm²
RC1-16 5/8″ 16 16-70mm²
RC1-20 3/4″ 20 35-95mm²





Model Rod Diameter Size
RC2-16 5/8″ 16 16-70mm²

Model Rod Diameter Size
RC3-16 5/8″ 16 16-70mm²
RC3-20 3/4″ 20 35-95mm²
RC3-25 1″ 25 70-120mm²





Model Rod Diameter Size
RC4-16 5/8″ 16 16-70mm²
