DC Isolating Switch

Basic Information

Model S32D S32D-T S32D-TL S32D-W1 S32D-W2

Rated current (A) 16, 25, 32

Pole 4P

Application

S32D series DC isolating switch is applied to 1~20KW residential or commercial photovoltaic system, placed between photovoltage modules and inverters. Arcing time is less than 8ms, that keeps solar system more safe. Max voltage is up to 1200V DC. It holds a safe lead among similar products.

Specification

Rated current (A)	16, 25, 32
Standard	IEC60947-3
Utilization category	DC-PV2/ DC-PV1/ DC-21B
Pole	4P
Rated frequency	DC
Rated operational voltage (Ue)	300V, 600V, 800V, 1000V, 1200V
Rated insulation voltage (Ui)	1200V
Rated short-time withstand current(lew)	1kA, 1s
Rated impulsed withstand voltage(Uimp)	8. 0kV
Over voltage category	II
Suitability for isolation	Yes
Polarity	No polarity”+”and”-“polarities could be interchanged
Mechanical life	18000 times
Electrical life	2000 times
Storage temperature	-10°C-+85°C
Mounting type	Vertically or horizontally
Pollution degree	IIl

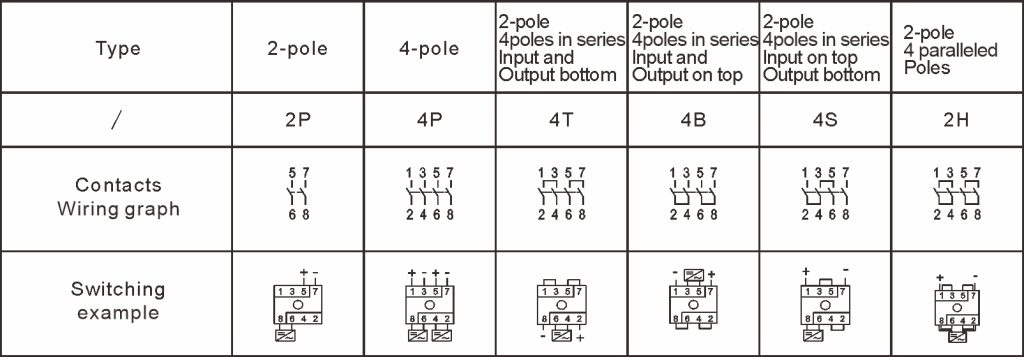

Switching Configurations

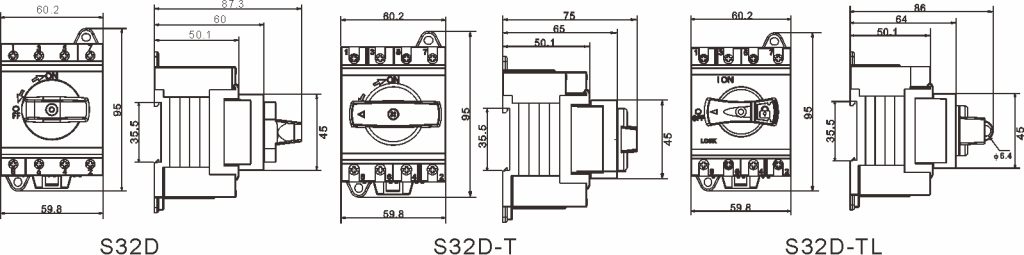

Dimensions

Feature

IP66 and UV resistantce
The handle can be padlocked in the “OFF” position
MC4 plugs with adaptor or cable glands can be select for
convenient connection and space saving

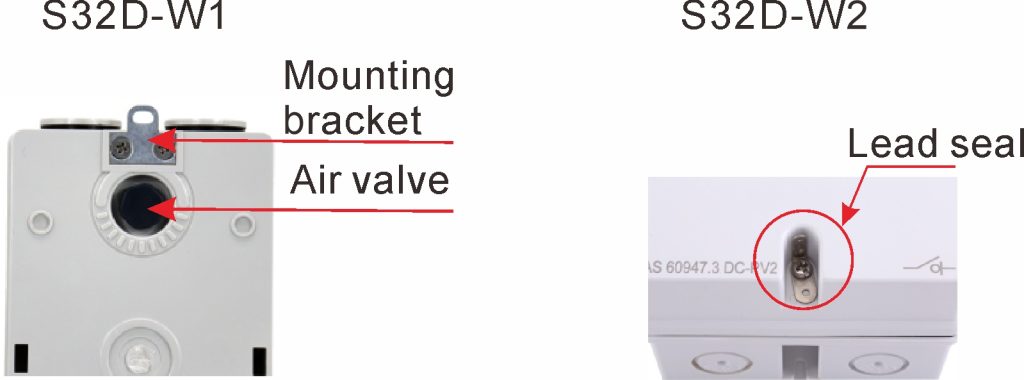

lP66 air valve helps air flowing and reducing temperatures
2 Pole,4 Poles are available (Single l Double String)
Standard: IEC60947-3,AS60947.3
DC-PV2, DC-PV1,DC-21B
16A,25A,32A,1200V DC

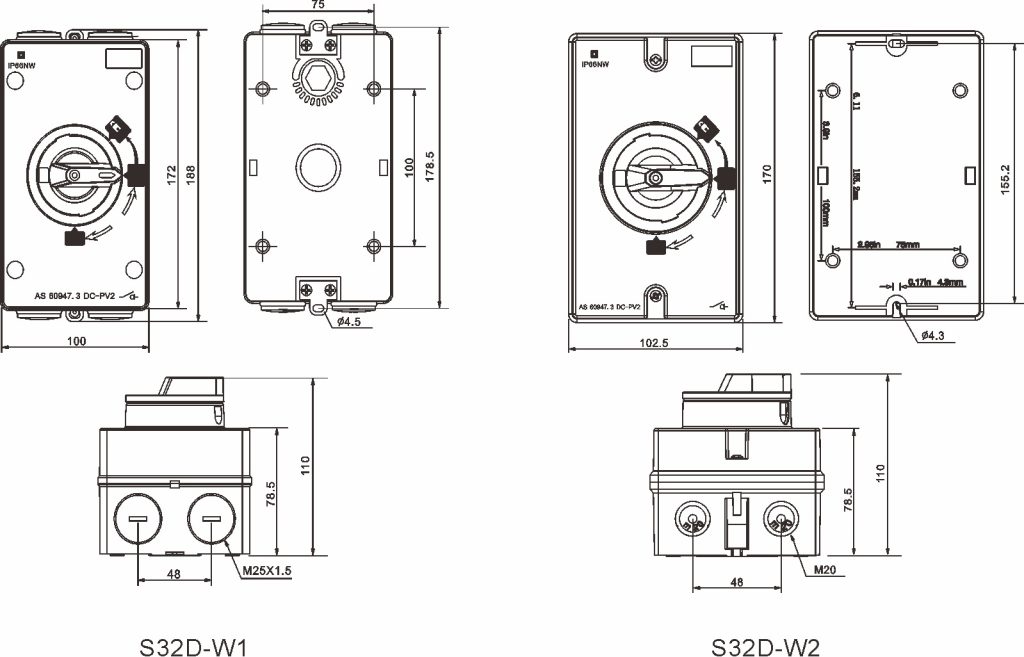

Dimensions
