Comb Busbar

Basic Information

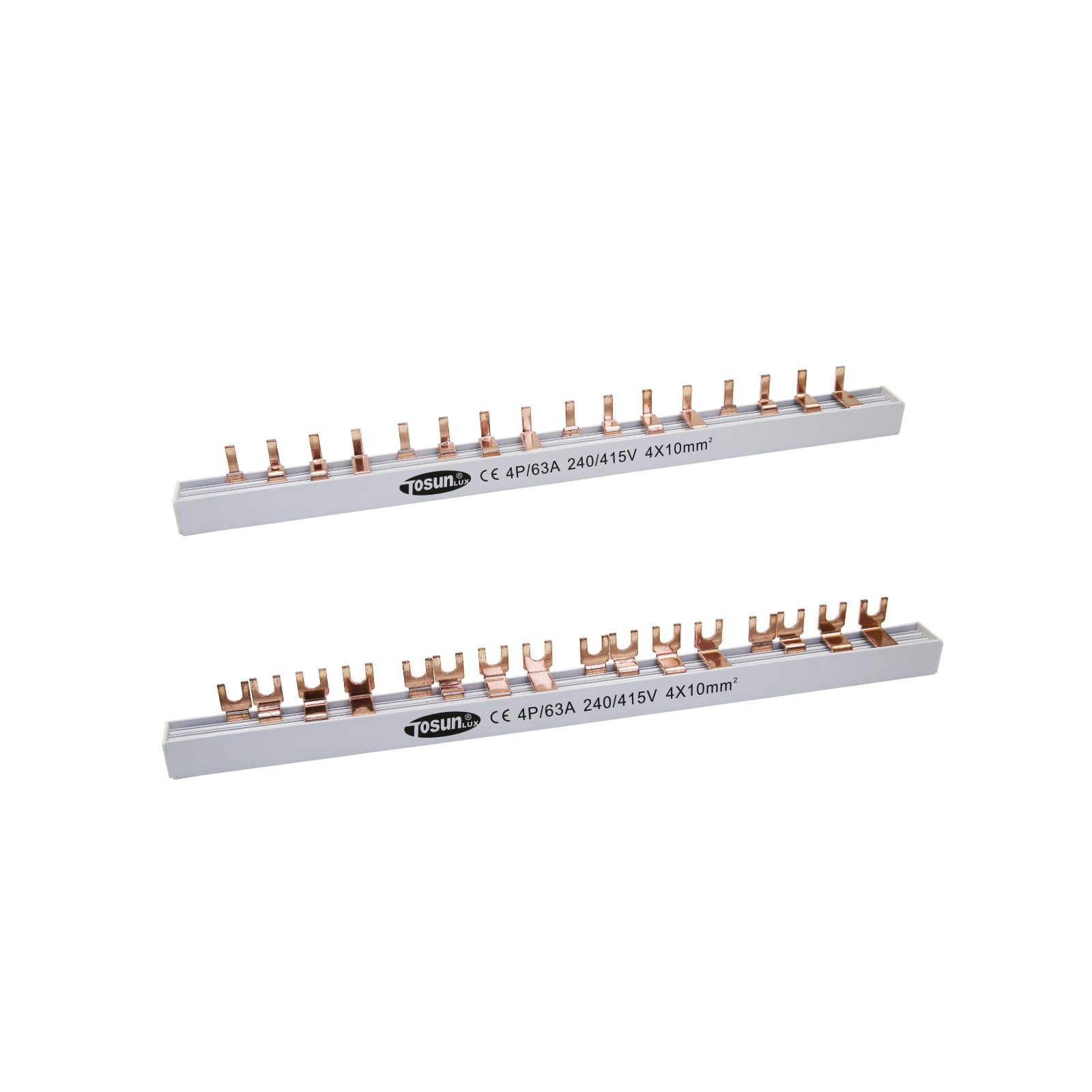

  1. Type Pin Type/Fork Type

Product Description

Type Rated Current(A)  Number of Poles Cross Section(mm) Length(cm)

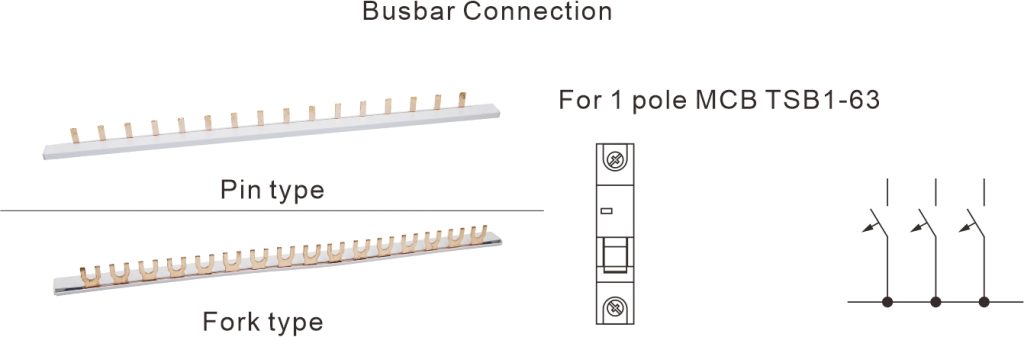

Pin type 32 54×1 5 100
63 10 100
Fork type 100 54×1 18 100



Type Rated Current(A)  Number of Poles Cross Section(mm) Length(cm)

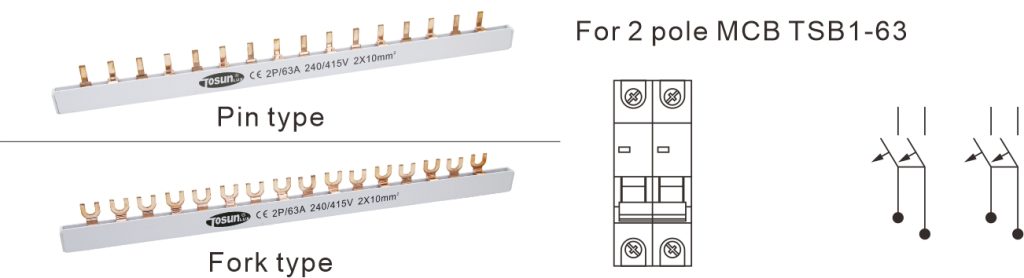

Pin type 32 27×2 5 100
63 10 100
Fork type 100 27×2 18 100



Type Rated Current(A)  Number of Poles Cross Section(mm) Length(cm)

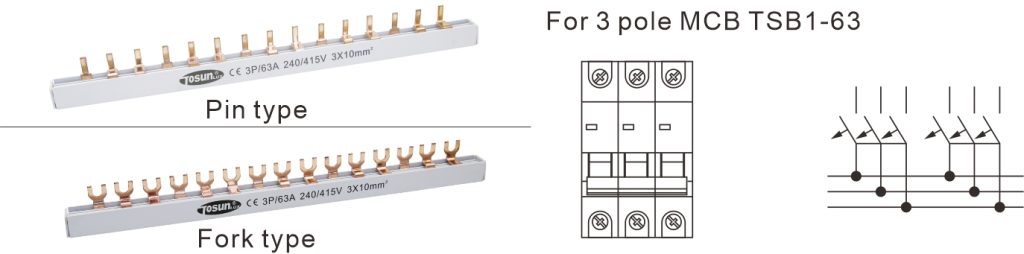

Pin type 32 18×3 5 100
63 10 100
Fork type 100 18×3 18 100



Type Rated Current(A)  Number of Poles Cross Section(mm) Length(cm)

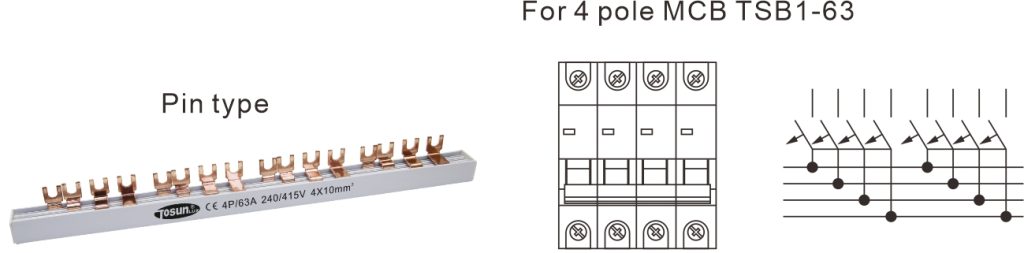

Pin type 32 14×4 5 100
63 10 100
Fork type 100 14×4 18 100



Type Rated Current(A)  Number of Poles Cross Section(mm) Length(cm)

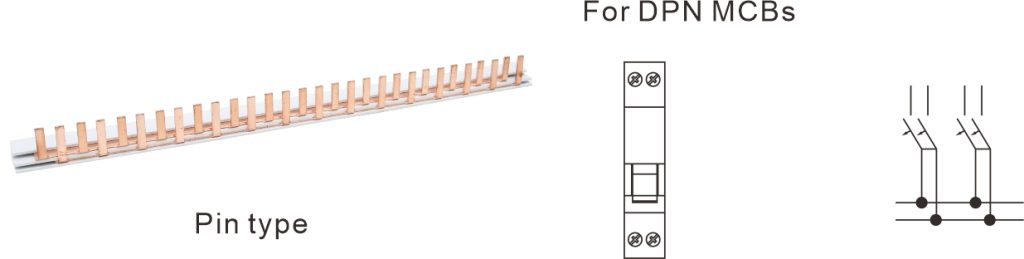

Pin type 32 54×2 5 100
32 10 100






Type Rated Current(A)  Number of Poles Cross Section(mm) Length(cm)

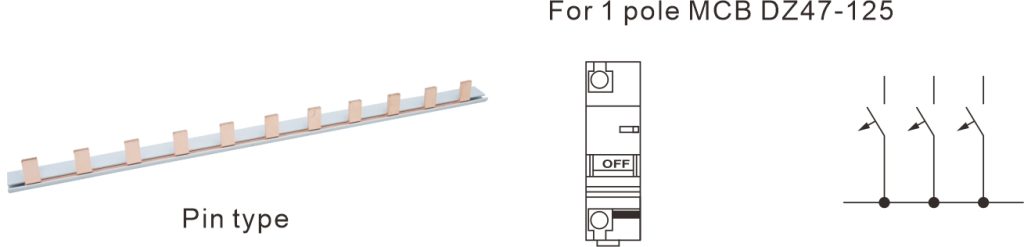

Pin type 125 36×1 18 100
125 18 100






Type Rated Current(A)  Number of Poles Cross Section(mm) Length(cm)

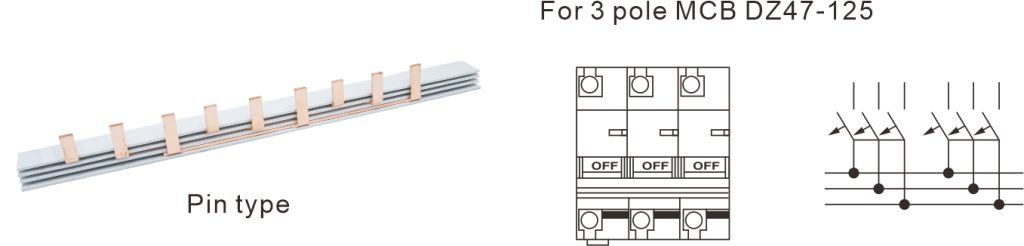

Pin type 125 12×3 18 100
125 18 100
