Product Description
Application
1.Closing of the impulse relay pole(s) is triggered by an impulse on the coil.
2. Having two stable mechanical positions, the pole(s) will be opened by the next
impulse. Each impulse received by the coil reverses the position of the pole(s).
3. Can be controlled by an unlimited number of pushbuttons.
4. Zero energy consumption.
Specification
| Model | Rated Current (A) | Wiring Diagram | Control Voltage |
| BIR-16/20 | 16 |  |
AC 24V DC12V AC 48V DC 24V AC 130V DC48V AC 230V DC 110V |
| B1R-16/11 |  |
||
| BIR-16/1C |  |
||
| BIR-16/10 |  |
Technical Data
| Dissipated Power | 1,2P:19VA (during the impulse) |
| llluminated PB Control | Max.current 3 mA(if>use an ATLz) |
| Operating Threshold | Min.85%of Un |
| Duration Of The Control Order | 50 msto 1 s(200ms recommended) |
| Response Time | 50ms |
| VoltageRated(Ue) 1P,2P | 24.…250VAC |
| Frequency | 50/60Hz |
| Maximum Operations | 5times/m |
| Maximum Switching Operation | 100times/d |
| Insulation Voltage(Ui) | 440VAC |
| Rated Impulse Withstand Voltage (Uimp) | 6kV |
| Electrical Life | 200,000cycles(AC21) |
| 100,000cycles(AC22) | |
| Overvoltage Category | IV |

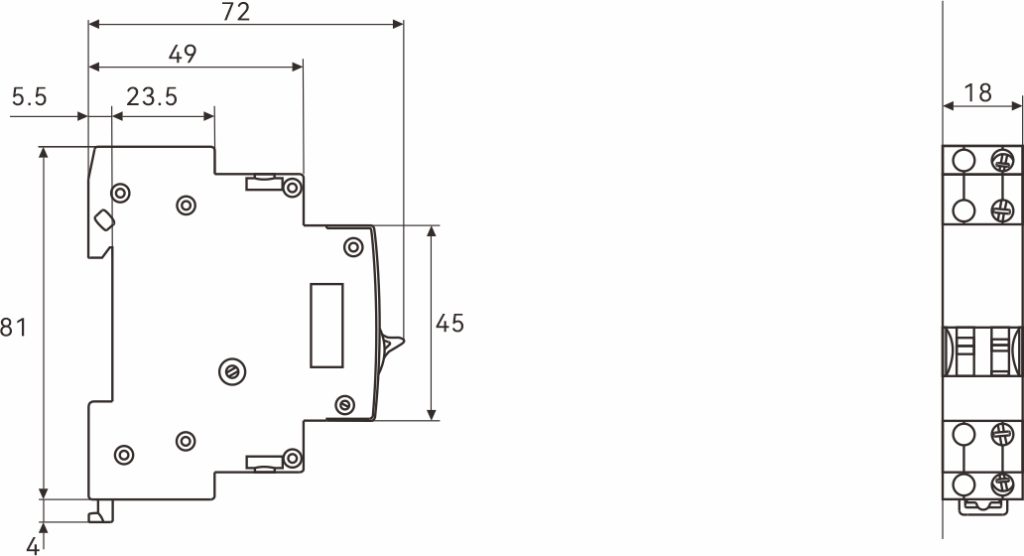

Dimensions
